| Description_ABR |
HeadBlotKit |
| Description_ASM |
Pontiac:-:326 (5.3L)-455 (7.5L) |
| Description_DES |
HEAD BOLT KIT |
| Description_EXT |

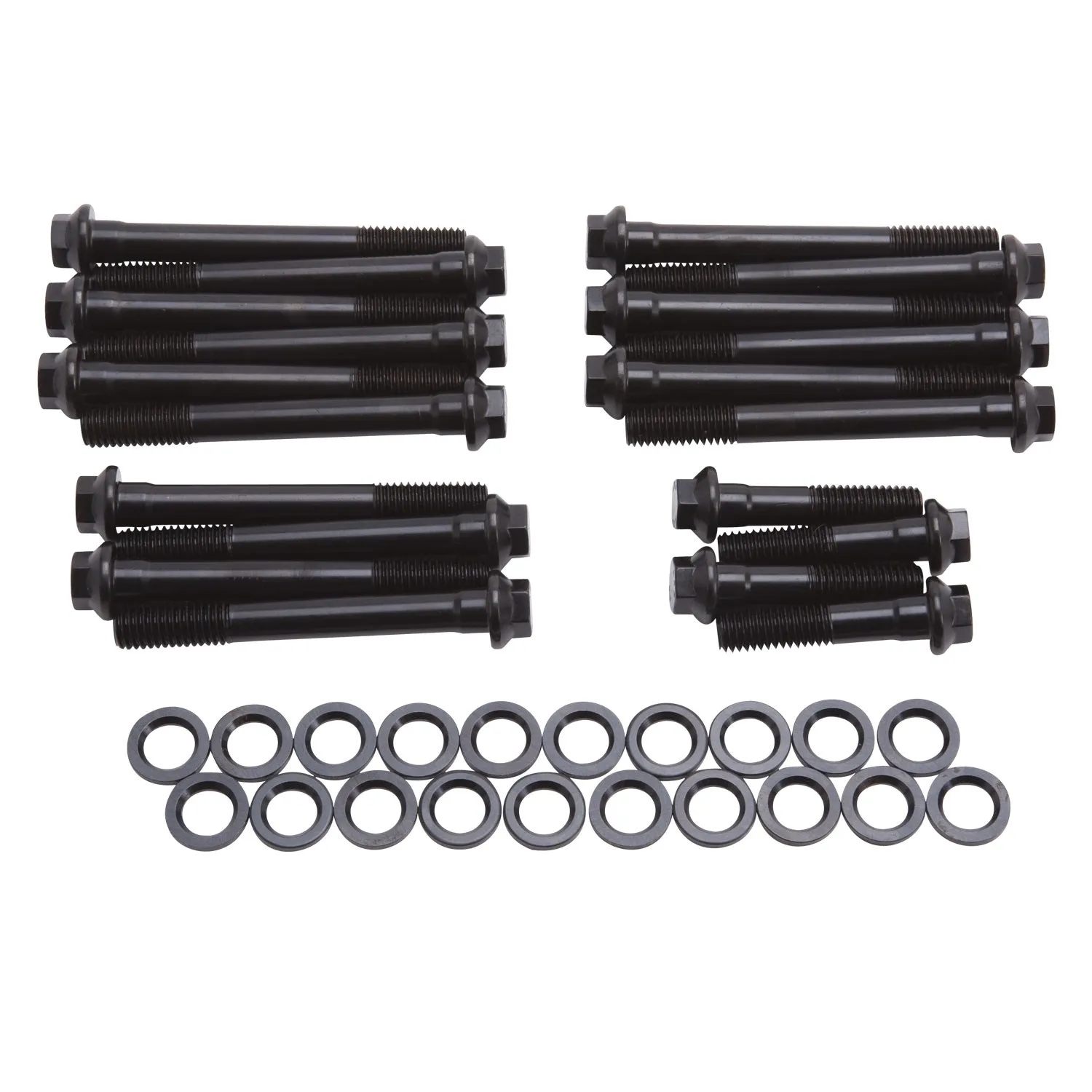

Edelbrock #8549 is a Head Bolt Kit for 1961-79 Pontiac 326-455 Engines with #60575; 60579; 60595; 60599; 61515; 61519; 61525; 61529; 60509; 60569; 60587; 60589 Edelbrock Cylinder Heads Manufactured after 3/15/02. Not for Stock Heads. |
| Description_FAB |
Cold-Formed; Heat Treated |
| Description_FAB |
Ensures Molecular Integrity |
| Description_FAB |
Hardened/Parallel-Ground Washers Included |
| Description_FAB |
Highest Quality Head Bolts |
| Description_FAB |
Manufactured By ARP |
| Description_FAB |
Rated At 170000 psi |
| Description_FAB |
Reduced Diameter Bolt Heads |
| Description_INV |
Pontiac Head Bolt Kit |
| Description_KEY |
Edelbrock; Pontiac; V8;?Head Bolt; Kit |
| Description_LAB |
Pontiac Head Bolt Kit |
| Description_MKT |
The Edelbrock #8549 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i. |
| Description_SHO |
{ Sellable : Yes } |
| Description_SHP |
{ eo : 0in.} |
| Description_TRA |
The Edelbrock #8549 is made specifically for Pontiac V8 • Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures; if necessary. •For 389-455 engines; use Edelbrock #7381; Fel-Pro #1016 or equivalent head gaskets. NOTE: Edelbrock Cylinder Head Gasket Set #7382 may also be used. • This gasket set includes all necessary gaskets for cylinder head installation; including cylinder head; intake; exhaust; water neck and valve cover gaskets. • Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation.• Use alcohol or lacquer thinner on a lint-free rag to clean. Coat threads; washers; and underside of bolt heads with motor oil for accurate torque readings. •Torque upper row of bolts to 105 ft./lbs.; torque lower row of bolts to 95 ft./lbs. in three even increments. Start in center and work out towards ends. A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| height |
2.0 |
| length |
9.0 |
| weight |
4.95 |
| width |
4.5 |
